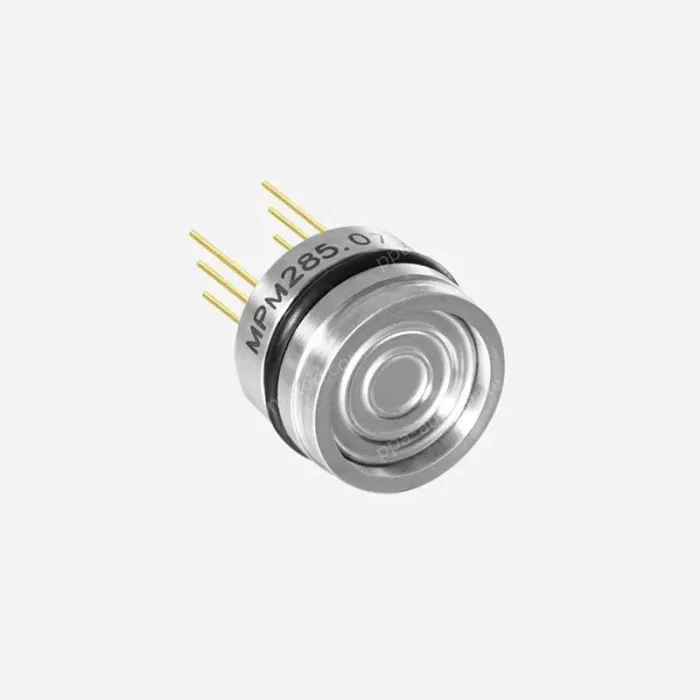

Oil-filled Pressure Sensor

★ ★ ★ ★ ★ 4.9 4814 Reviews

Model: MPM285

Order No:

SKU: 1716287094051771837

Category: Pressure Sensors Portfolio

Brand: MICROSENSOR

Condition: New Sealed Under Guarantee

Size: 0.00mm, 0.00mm, 0.00mm;

Weight: 10.00g

Product Selection Engineer: Lixintao

Leading

Description Reviews

MPM285

Oil-filled Pressure Sensor

MPM285

· Φ15×10.5mm · 0bar~1bar...35bar · 0~70℃ Compensated Temp. Used For Industrial Process Control, Gas & Liquid Pressure Measure, Pressure Checking Meter & Pressure Calibrator, Liquid Pressure System and Switch

MPM285

MPM285 oil-filled pressure sensor employs a silicon die known for its exceptional stability, a corrugated diaphragm made of stainless steel 316L, and a sturdy housing crafted from stainless steel 316L. The compact construction and size of the oil pressure transducer are suitable and applicable for limited installation space working site. It also can measure the medium compatible with stainless steel and FKM.Feature • Cost Effective, Small size • Chip from international famous brand • Laser Trimming for temperature compensation • Pressure range: 0bar~1bar…35bar • Gauge, Sealed gauge and AbsoluteElectrical Performance • Electrical connection: Φ0.5mm Kovar pin or 100mm silicon rubber flexible wires • Common mode voltage output: 50% of input (typ.) • Input impedance: 2.5kΩ~5kΩ • Output impedance: 3.5kΩ~6kΩ • Response (10%~90%): <1ms • Insulation resistor: 100MΩ@100V DC • Overpressure: 2 times FSConstruction Performance • Diaphragm: Stainless steel 316L • Housing: Stainless steel 316L • Pin: Kovar • O-ring: FKM • Net weight: ~10g

★ ★ ★ ★ ★
